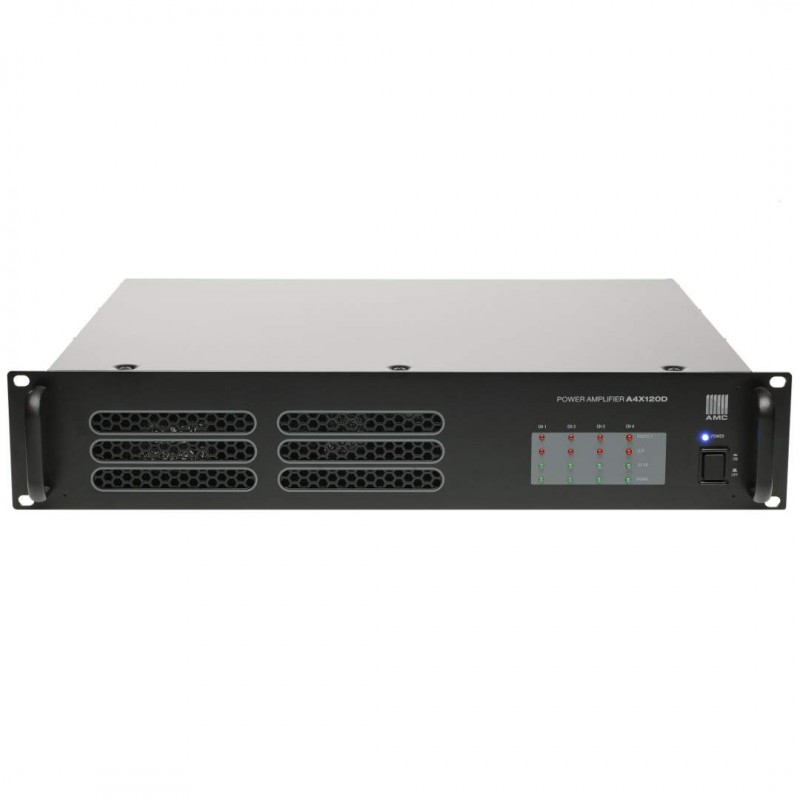

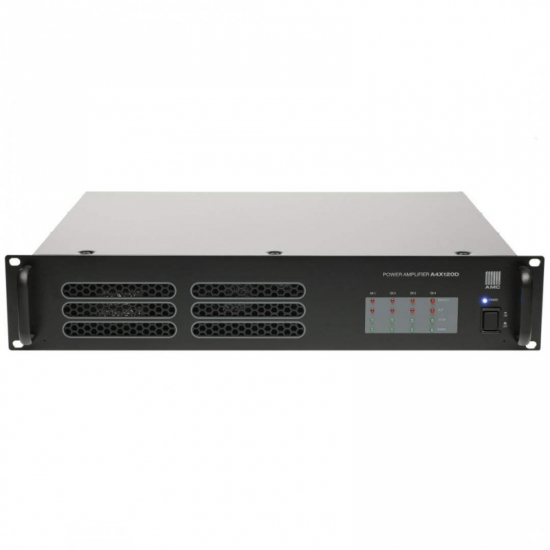

A4X120D high efficiency switching mode power supply D-class amplifier. Robust construction design, high quality components, traditional long lasting performance. All amplifier channels has 120W power, own individual gain control, HPF filter and output transformer. Designed for professional applications in medium and large scale voice evacuation and public address systems.
Output power: 4 x 120 W
AC power consumption: 580 VA
Power supply: ~ 230 V / 50 Hz
Stand by power consumption: 31VA

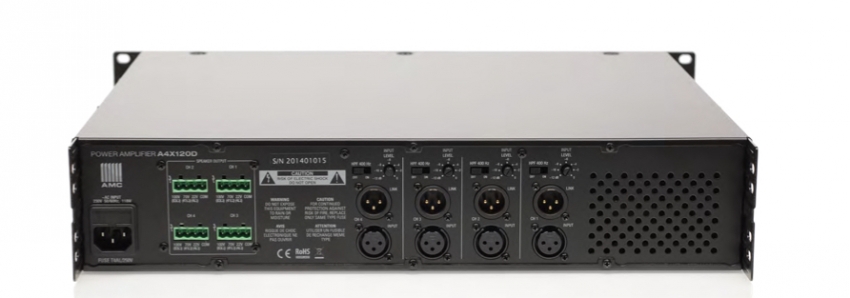

Outputs: Hi and Low impedance outputs - 22 V, 70 V, 100 V (phoenix connector) Link outputs - Balanced XLR
Inputs: Balanced XLR
Frequency response: 50 Hz - 18 kHz
THD: < 0,01 % (1kHz, 1/3Rated Power)
Signal / noise ratio: >90 dB
Controls: Input gain control, HPF
Indicators: Power, Signal, Clip, Protect
Dimensions: 483 mm x 88 mm x 433mm
Weight: 14,8 kg
